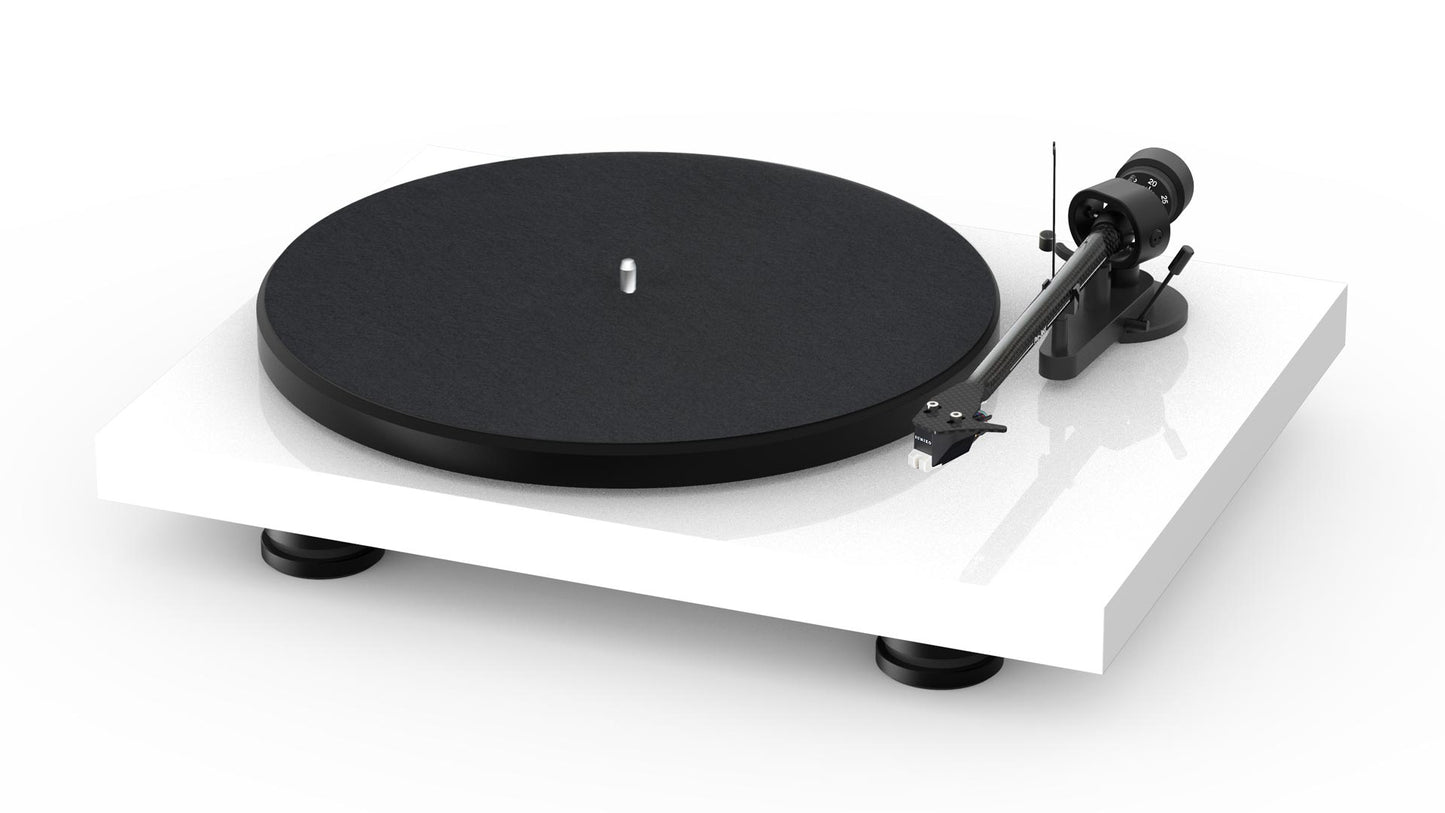

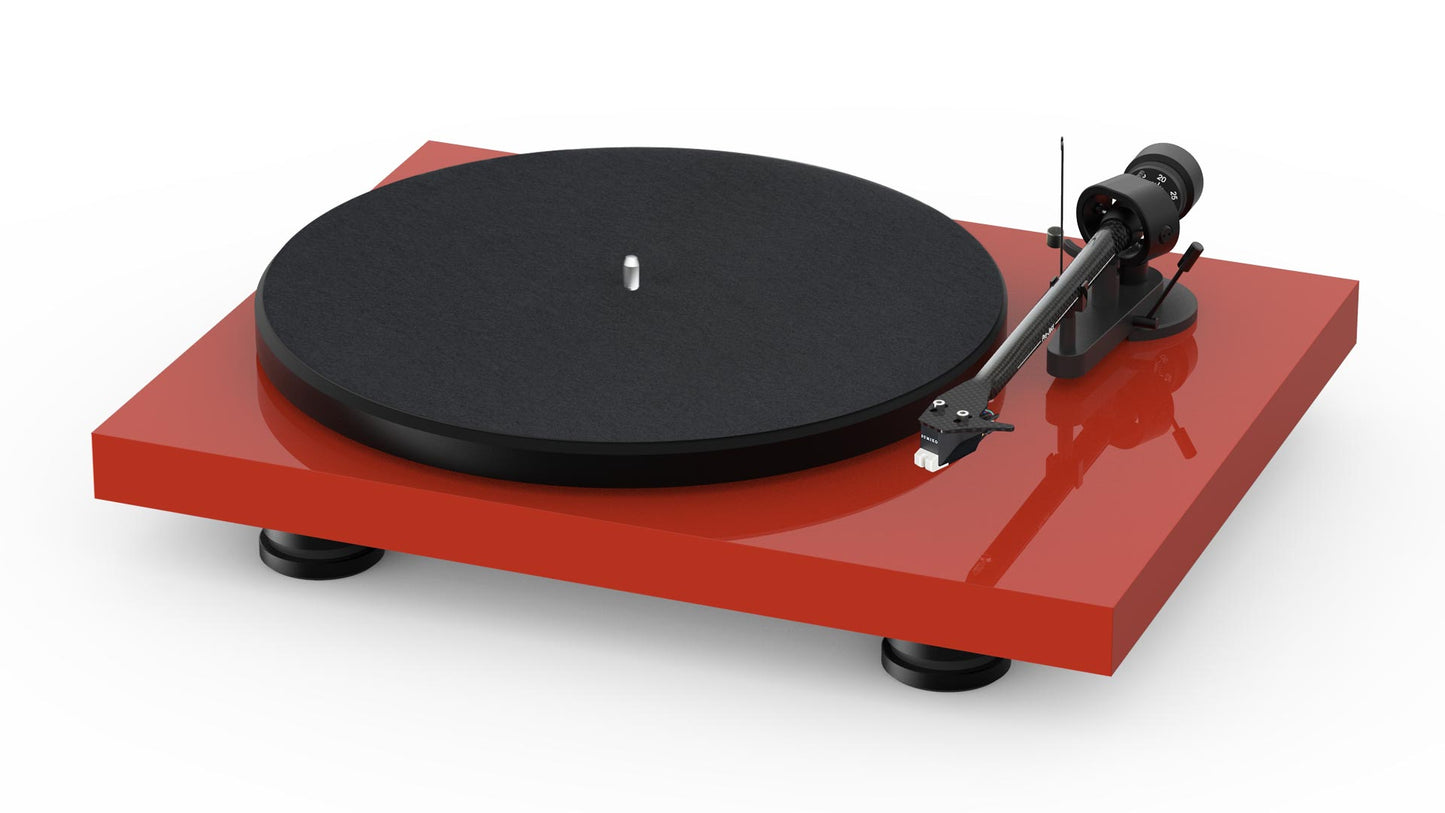

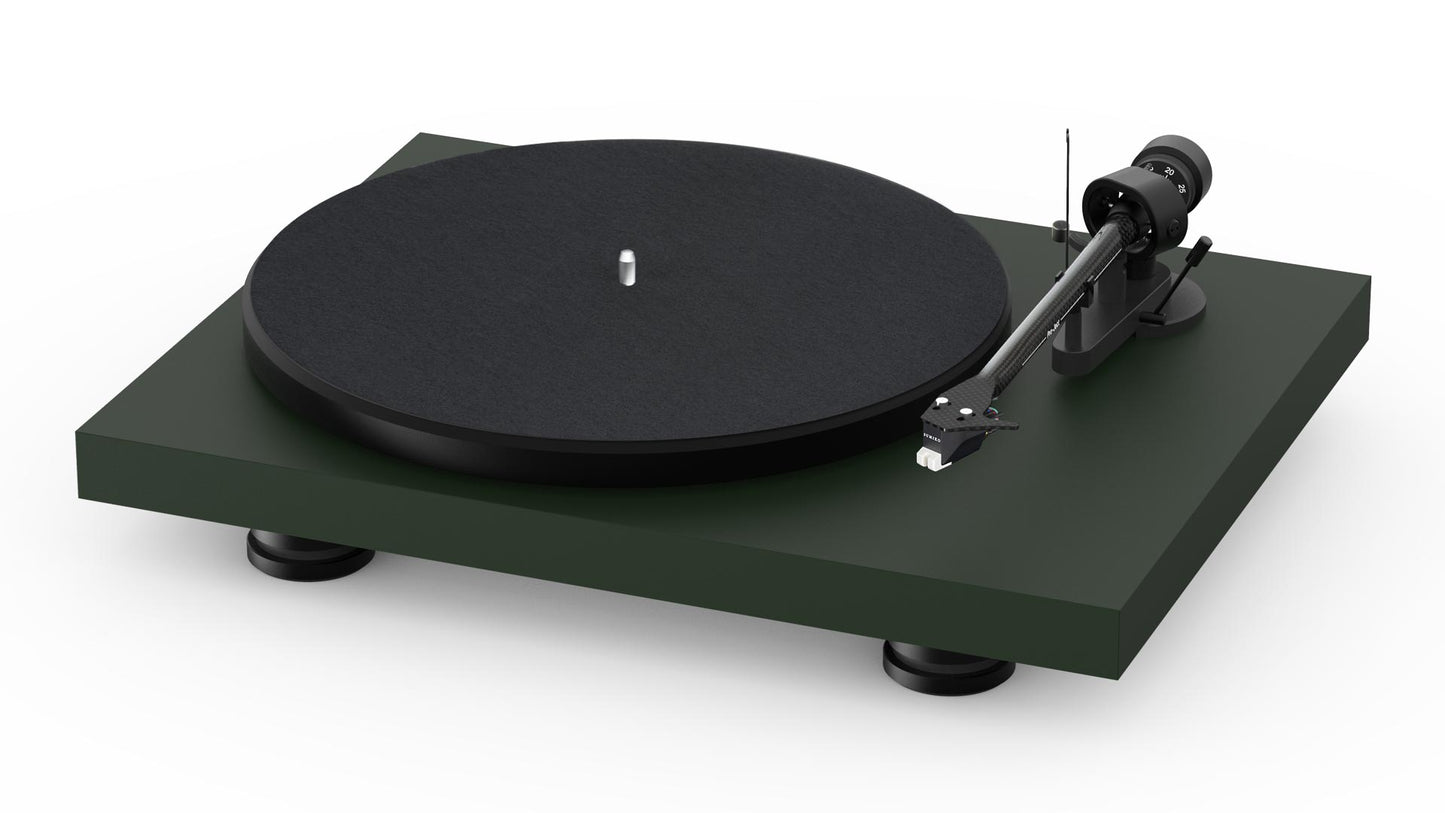

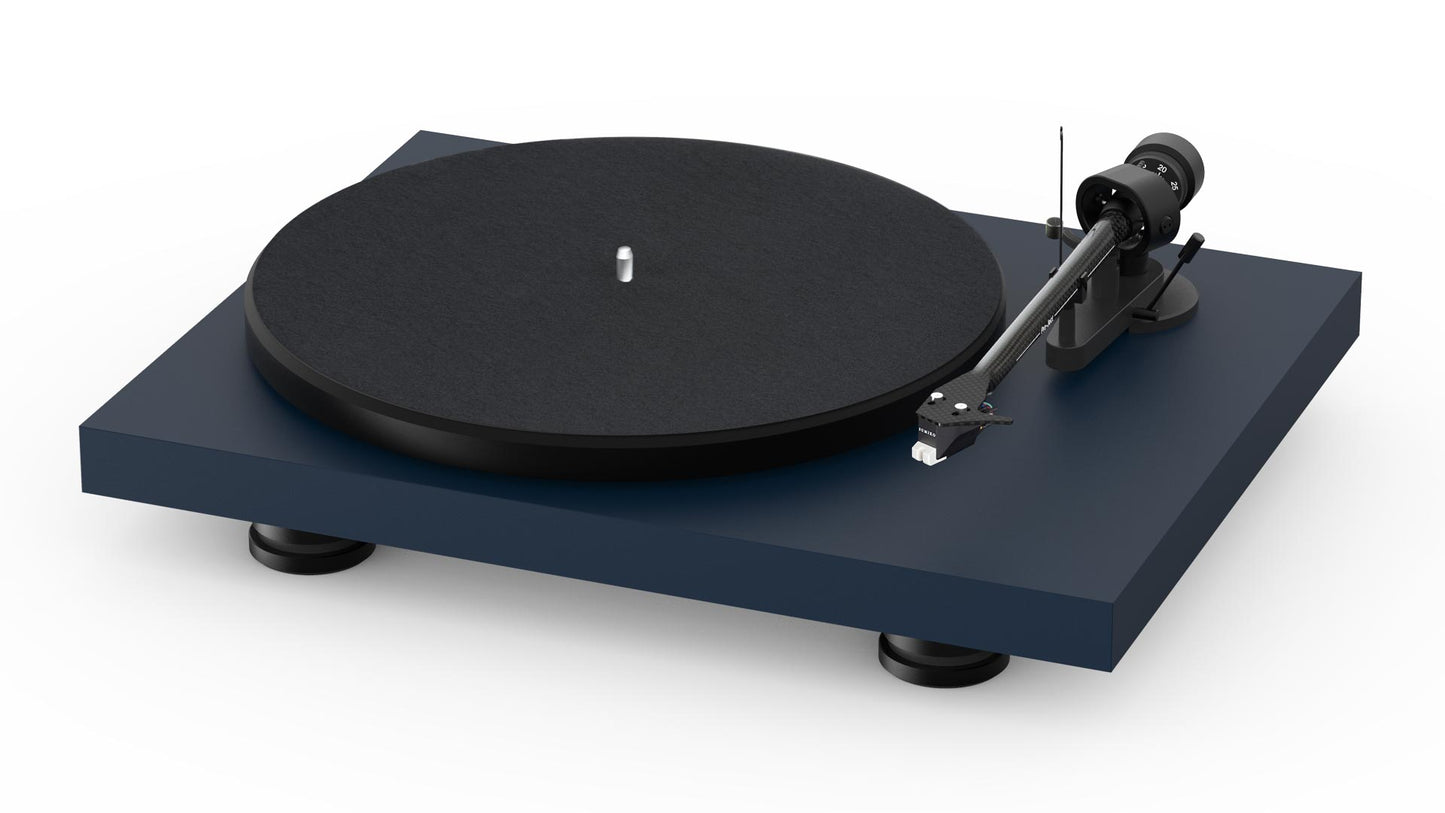

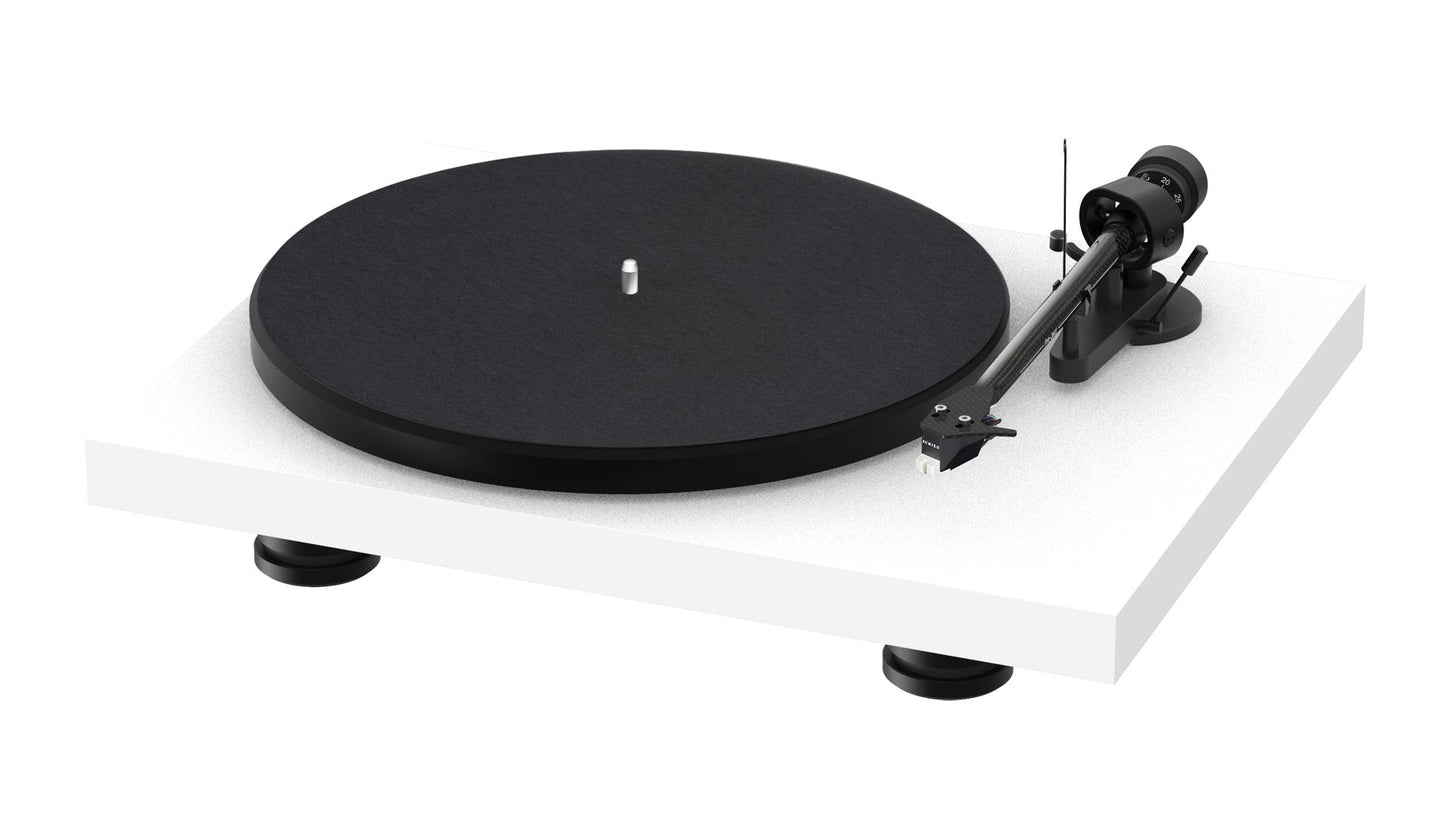

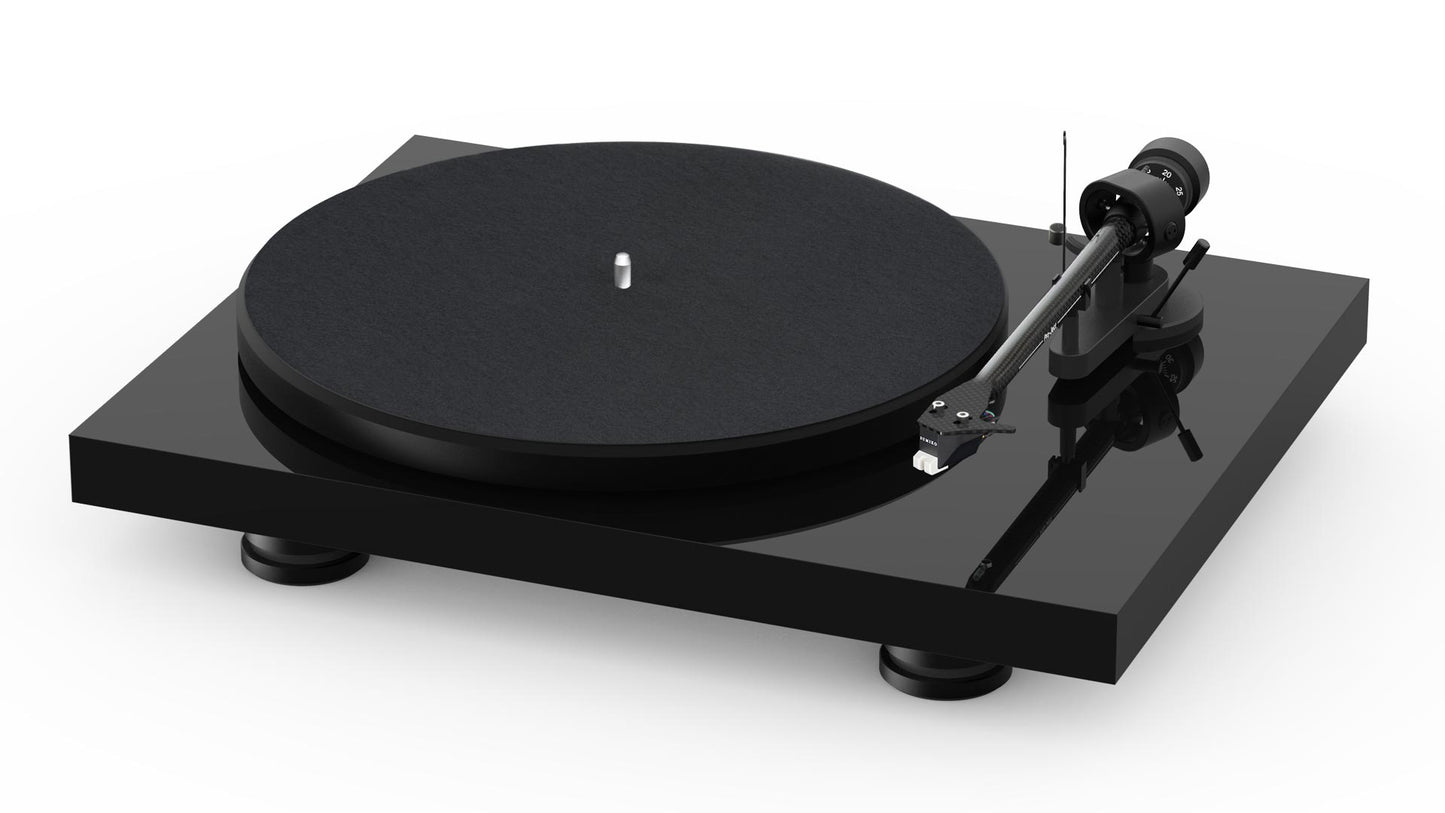

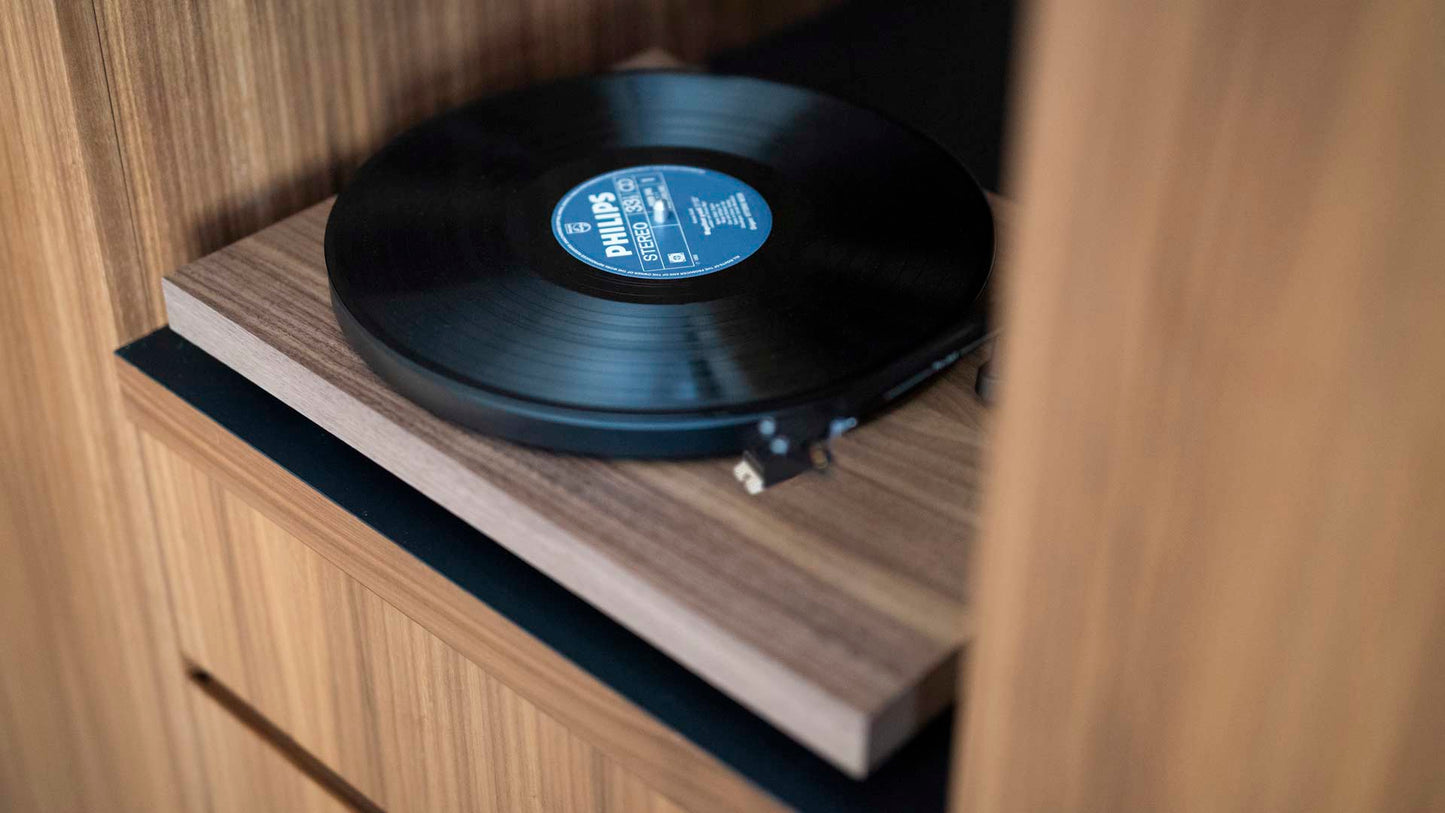

Debut Carbon EVO

The new Debut Carbon EVO represents the epitome of Pro-Ject’s philosophy: high performance, clean aesthetics, and superb value. The elegant, simple aesthetic is unmarred by gimmicky lights, sliders, and buttons. It is a pure, high-performance turntable. Should requirements call for a phono preamp, Bluetooth or digital connectivity, USB interface, or integrated amplifier, we offer a wide range of external electronics, optimized for any application.

The Debut Carbon EVO benefits from the huge range of higher-level design elements Pro-Ject Audio has to offer, incorporating the special TPE-damping height-adjustable metal feet from our award winning X1 turntable. Not only do the vibration-absorbing feet help isolate the turntable, they are easy to adjust and leveling the turntable is now as simple as can be. A perfectly leveled, solid & stable platform is crucially important for proper vinyl playback.

∙ Sumiko Rainier MM phono cartridge
∙ Massive TPE-damped steel record platter

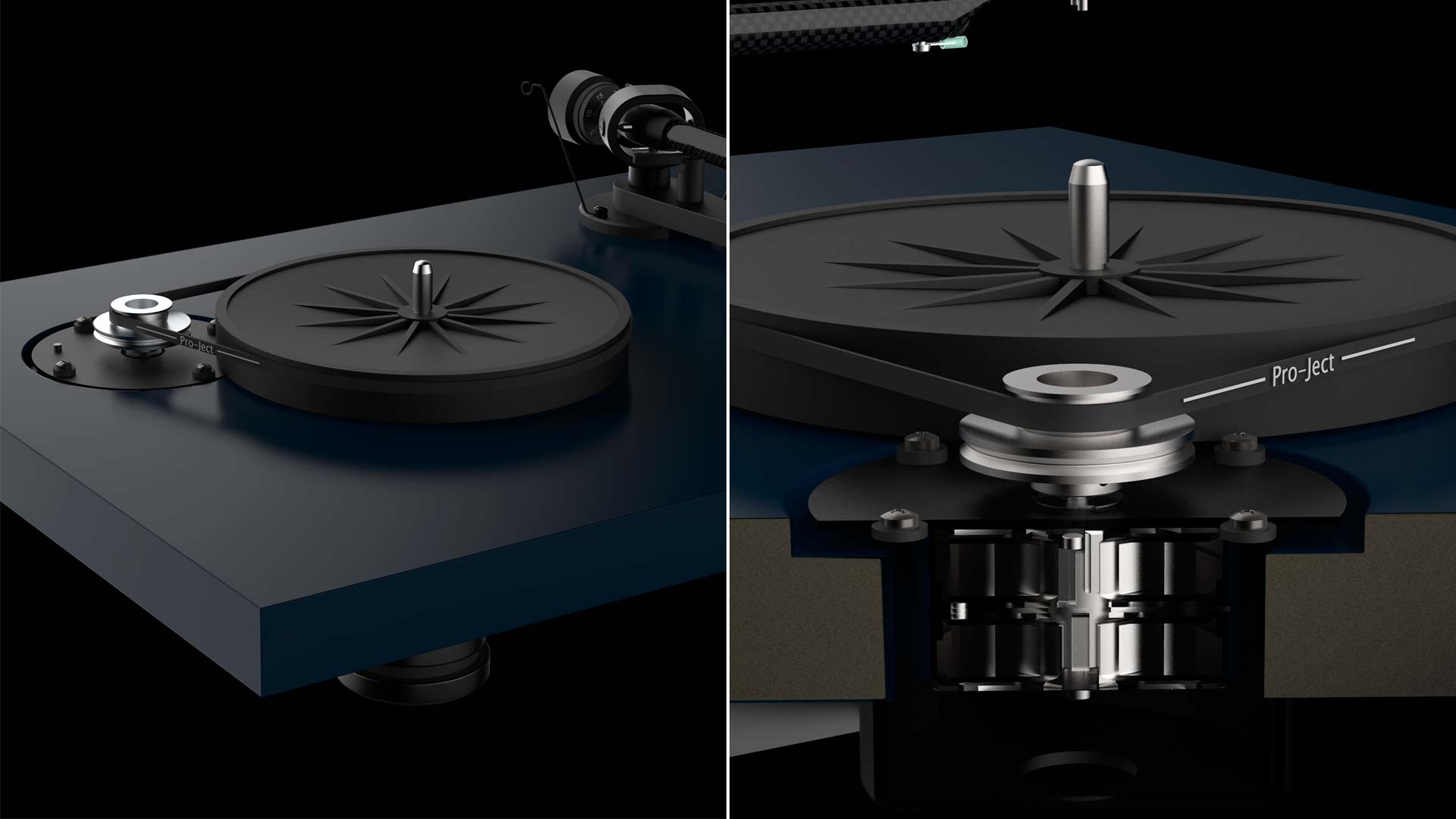

∙ Motor, motor shielding & suspension
∙ Electronic speed changer & stabilizer
∙ Adjustable TPE-damped isolation feet

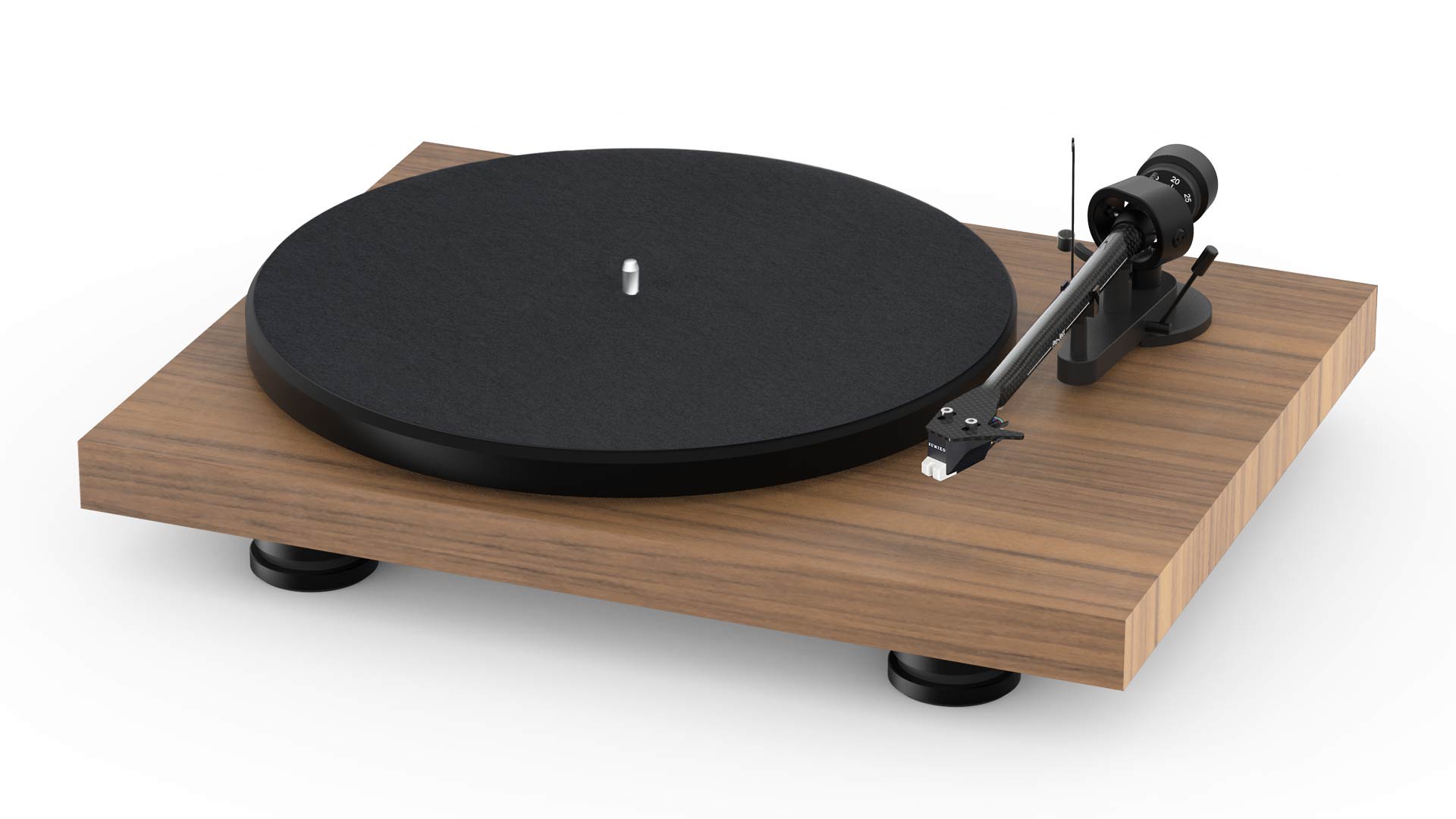

∙ Satin finishes incl. real walnut veneer

FEATURES

• 8.6″ one-piece carbon fiber tonearm
• Low-friction precision sapphire tonearm bearings
• Sumiko Rainier phono cartridge, factory mounted and aligned (US only)
• Heavy 1.7kg steel platter w/ TPE damping
• Electronic speed selection for 33 & 45rpm (78rpm capable)
• TPE-damped motor suspension
• Premium gold-plated, chassis-mounted RCA jacks
• One continuous run of high-purity copper tonearm wire
• Shielded termination box
• Height-adjustable TPE-damped aluminum leveling feet
• Hinged adjustable dust cover
• 1.23m semi-balanced phono cable with dedicated ground wire

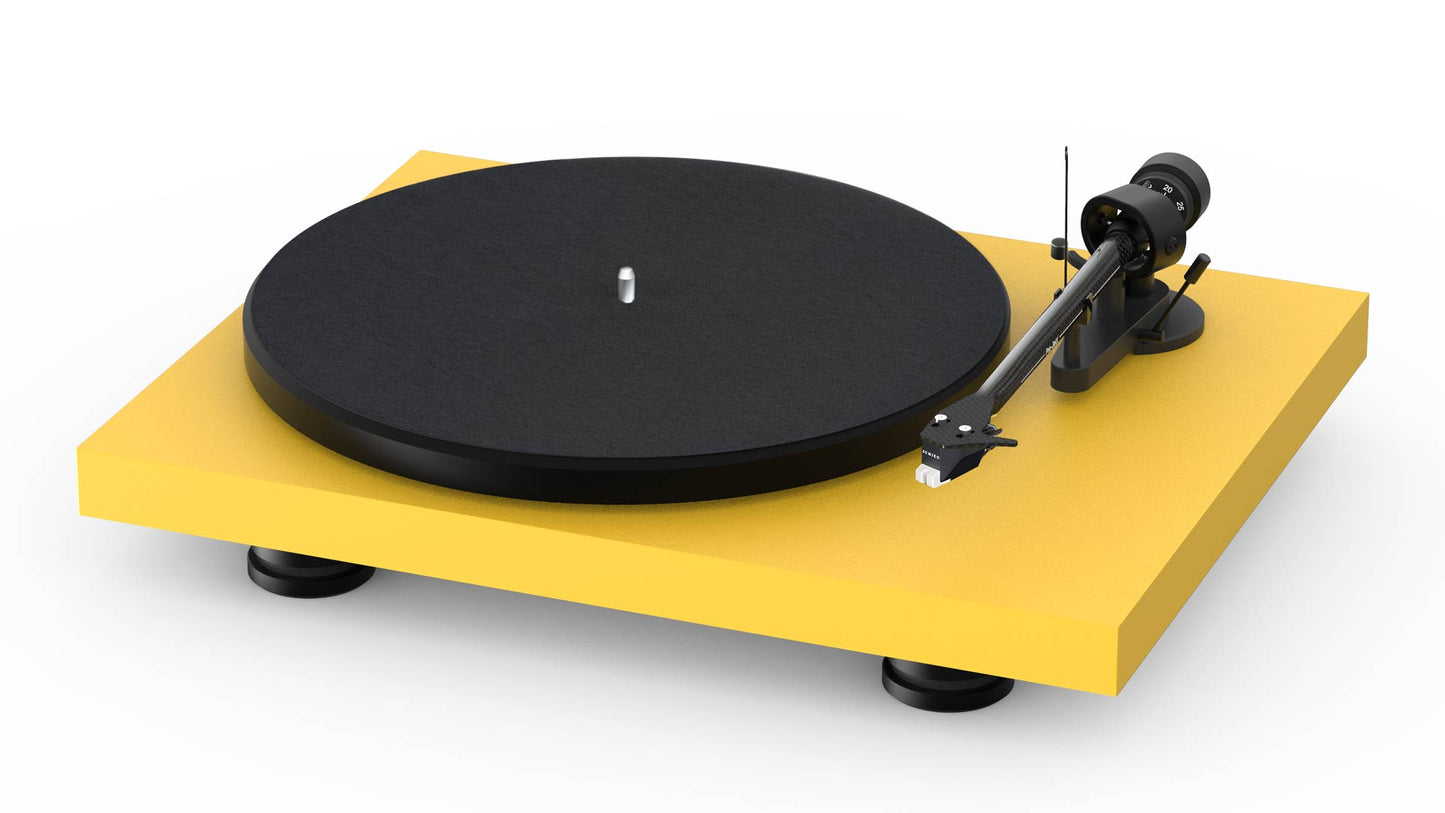

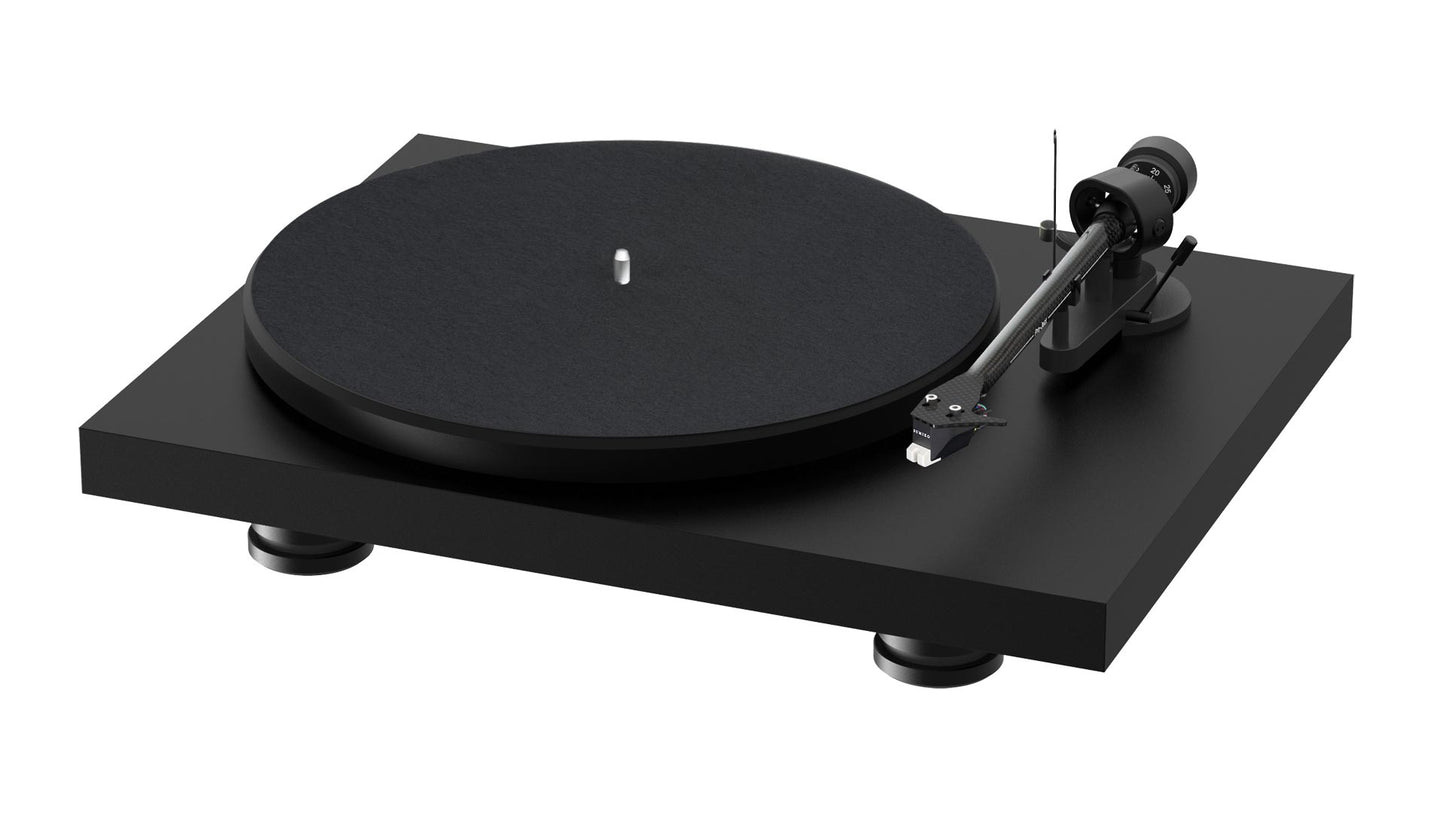

• 8-coat lacquered finish in 3 high gloss colors, 5 satin matte finishes or real walnut veneer
• Manufactured in the European Union
• Two year parts and labor warranty

SPECS

• Speed: 33, 45/(78)rpm (electronic speed change)
• Drive principle: belt drive, electronic speed control
• Platter: 300mm, 1.7kg steel
• Platter damping: TPE damping ring and felt mat
• Main bearing: stainless steel, brass bushing
• Wow & flutter: 33: +/-0.19%; 45: +/-0.17%
• Speed drift: 33: +/-0.6%; 45: +/-0.7%
• Signal to noise: 68dB
• Tonearm: 8.6″ carbon fiber one-piece tonearm tube
• Effective arm length: 218.5mm
• Effective arm mass: 6.0g
• Overhang: 18.5mm
• Included accessories: 15V DC / 0.8A power supply, dust cover
• Power consumption: 4W / 0W standby
• Dimensions: 415 x 113 x 320mm (WxHxD)
• Weight: 6kg net

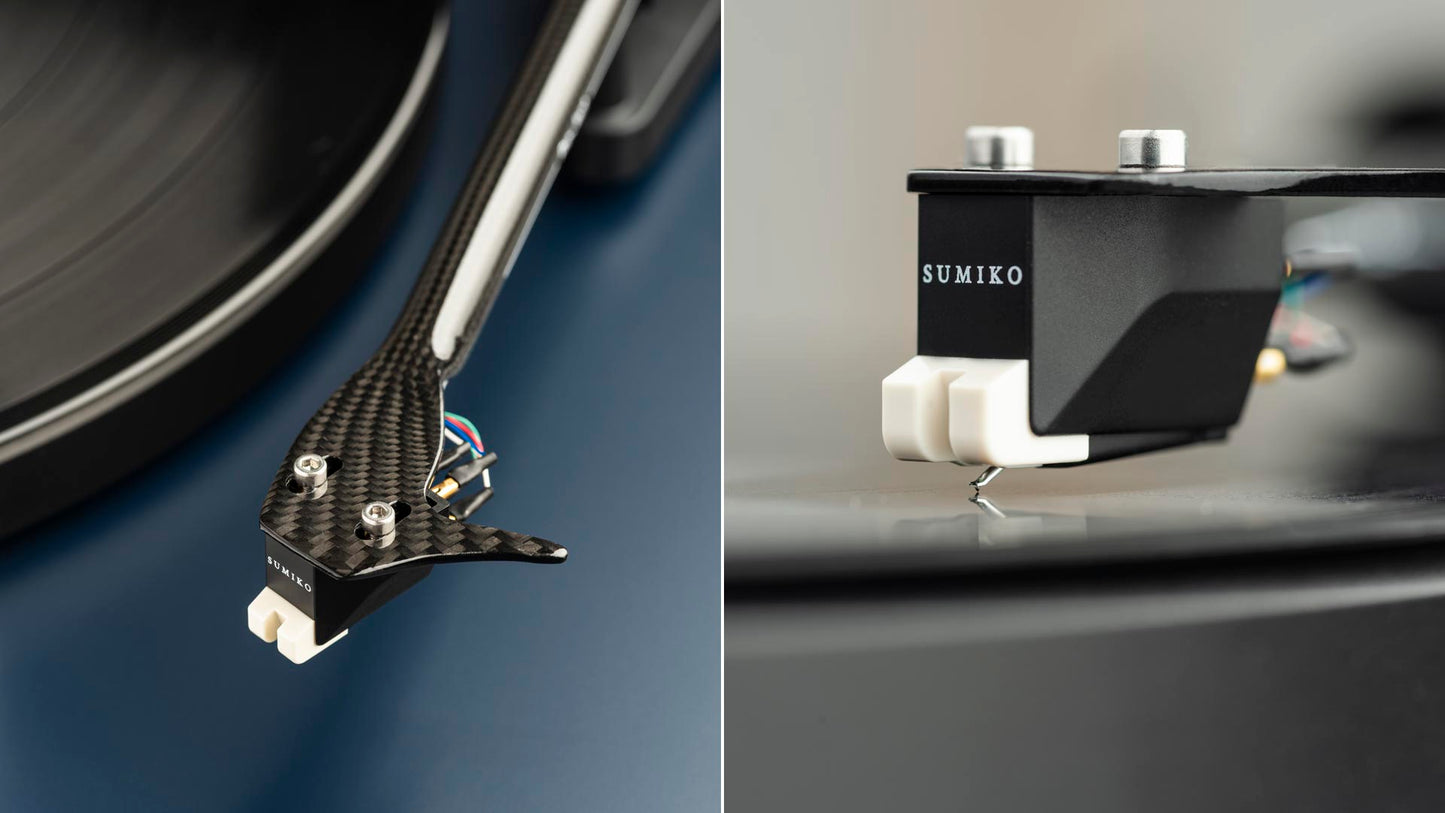

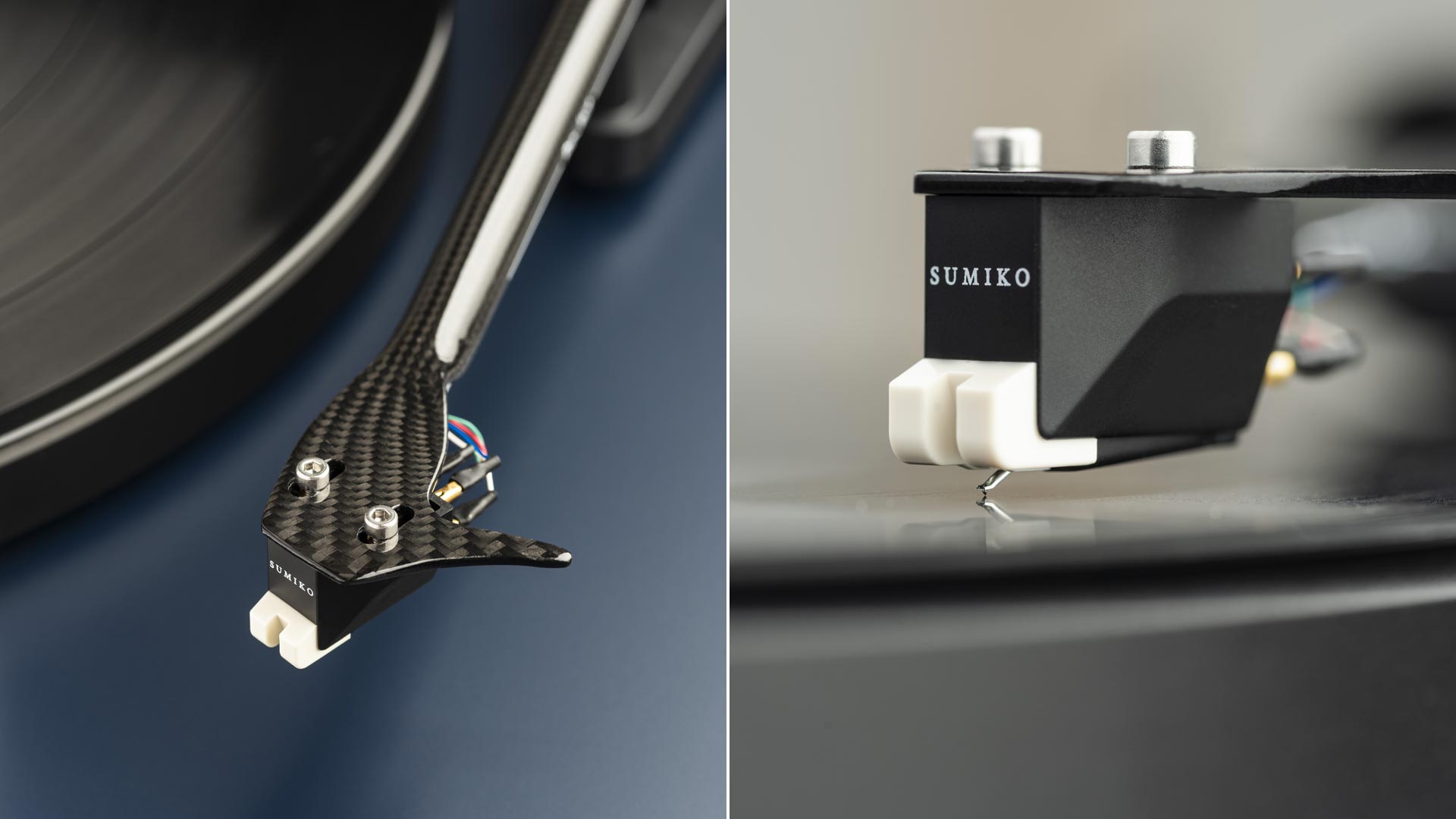

SUMIKO RAINIER

• Frequency range: 12-25,000Hz
• Channel separation: 25dB/1kHz
• Output voltage: 5mV
• Recommended load impedance: 47kohms (MM input)
• Compliance/stylus type: 10µm/mN – elliptical
• Recommended tracking force: 20mN
• Weight: 6.5g

PACKAGE CONTENTE

• Debut Carbon EVO turntable
• Sumiko Rainier phono cartridge (mounted & aligned)
• Adjustable acrylic dust cover
• Drive belt for 33 1/3 & 45rpm
• Drive belt for 78rpm
• Adapter for 7″ singles
• Connect It E phono cable with external ground wire
• Felt record mat
• Multi-voltage power supply
